PFM Porcelain Fused to Metal Crowns

porcelain fused to metal crown

PFM Porcelain Fused to Metal Crowns

David Hudnall

By David Hudnall, DMD

For many years, porcelain fused to metal crowns has been a go-to solution for full coverage restorations. Their reliability has been proven through extensive long-term clinical research that is well documented in the dental literature.

Millions of porcelain restorations have been placed worldwide. The real reason that they became so popular has to do with their strength and their ability to offer an aesthetic solution for teeth in all areas of the mouth. Porcelain fused to metal crowns often lasts 15 to 20 years before requiring replacement in patients with good oral hygiene.

Read on to learn about porcelain fused to metal crowns and when it is a useful dental solution.

IPS e.max

When To Use Porcelain Fused To Metal Crowns

Although other crown materials, such as lithium disilicate (Emax) and zirconia, have made great strides in recent years, porcelain fused to metal crowns continue to have value as a restorative solution in a number of specific situations:

  • Patients with hard bites or bruxism can benefit from an indestructible metal occlusal surface that doesn’t wear the opposing dentition
  • Metal rests and lingual surfaces can be made to accept cast metal removable partial dentures
  • Precision attachments for clasp-free cast metal removable partials

Material Properties

Depending on the dentist’s selection, porcelain is applied to a metal substructure made from high-noble, semi-precious metals, or base metal alloys. Substructures made from alloys that contain higher percentages of noble metals offer greater material strength and are known for being more biocompatible when it comes to metal allergies and reactions. Differences in alloy composition often determine the cost of the final restoration.

  • High-noble – 60% noble metals including a combination of gold, platinum, or palladium with a minimum of 40% gold content.
  • Semi-precious or noble – 25% or more gold or other noble metals supplemented with other metal elements.
  • Non-precious or base metal – Less than 25% noble metal content combined with chromium beryllium, nickel, and cobalt. Additional elements may include tungsten, manganese, iron, silicon, carbon, and molybdenum.

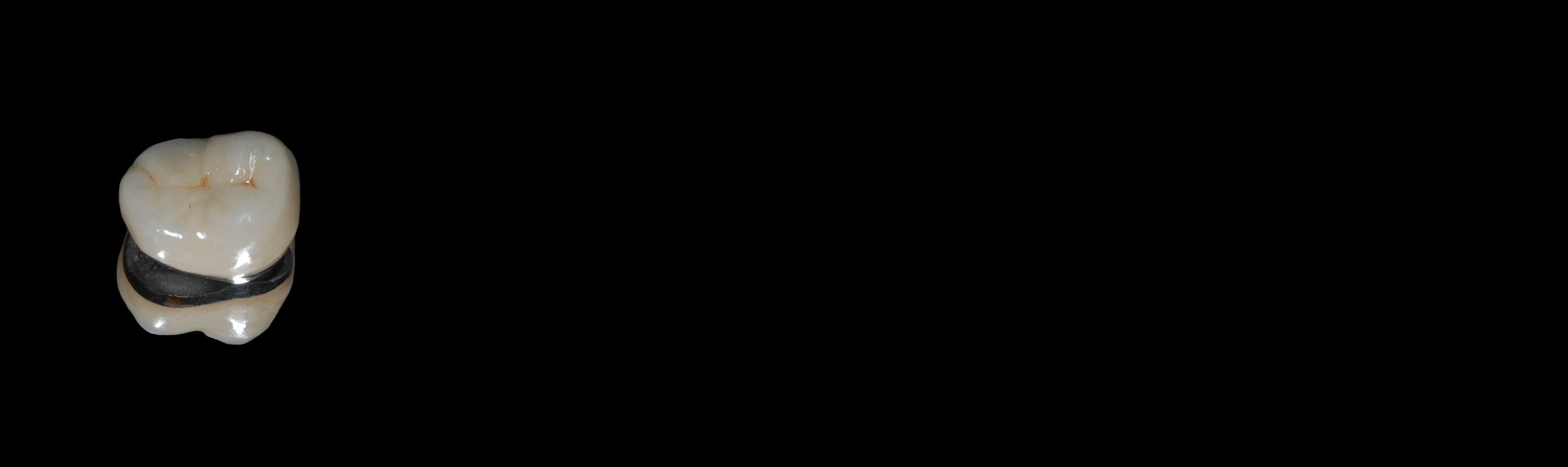

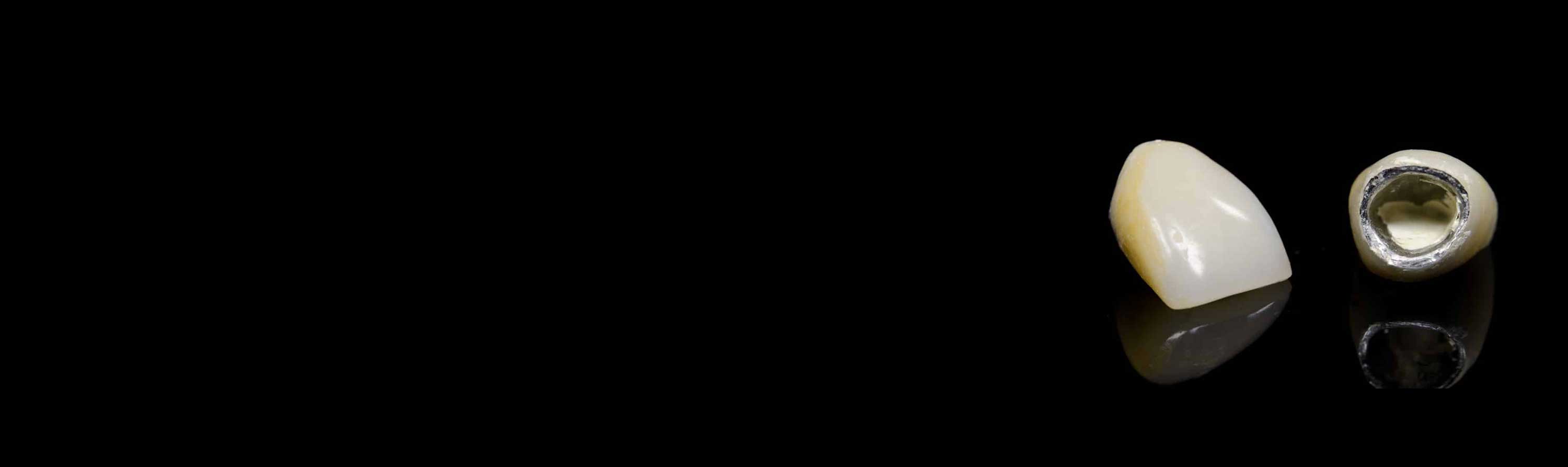

Metal Coping PFM
USES
Full-coverage crowns
Bridges
Long-span bridges
¾ crowns
Crowns and bridges with metal occlusal surfaces

Special Features of Porcelain Fused To Metal Crowns

Porcelain fused to metal crowns offer a combination of strength and improved aesthetics that all-metal restorative counterparts don’t possess. PFM crowns have a long history of use in dentistry and have been the tried-and-true solution for dentists for more than 60 years.

More recently, all-ceramic crowns have emerged onto the scene. They have become more popular for patients and dentists alike. But they don’t come with a built-in track record of research to support their long-term use and benefits.

One of the biggest benefits that all-ceramic crowns offer is they require less good tooth structure to be removed for an ideal crown preparation. Because they contain no metal substructure, they also provide improved aesthetics, yielding a more enamel-like appearance. Porcelain fused to metal crowns can still be a great choice for certain patients and specific areas of the mouth.

Drawbacks of Porcelain Fused To Metal Crowns

Despite their numerous documented advantages, creating a highly lifelike porcelain fused to metal crown can prove to be difficult to create. In the absence of a metal substructure, porcelain is fragile and lacks the strength necessary to withstand occlusal and sheering forces. With a substructure, the metal color can show through. It must be masked with opaque porcelain to obscure the underlying color before layering with Feldspathic porcelain.

Both metal and opaque porcelain prevent light from passing through the restoration as it does with a natural tooth, making the restored teeth look less lustrous when compared to the surrounding natural teeth.

An enemy of porcelain fused to metal crowns is recession of the gum tissue. Over time, metal contact with the tissue may cause gum sensitivity and irritation, especially when base metal alloys are used. With recession, the metal margin begins to show, creating an ugly gray ring that isn’t aesthetically pleasing, particularly in the anterior area of the mouth. Dentists sometimes resort to using a porcelain margin during tooth preparation to overcome this drawback.

Tooth Preparation

A PFM crown prep requires rather aggressive anatomical tooth reduction to avoid a bulky-looking appearance at delivery. Teeth must be shaped to account for the thickness of both the metal substructure and the layers of porcelain stacked on top of it in order for the ceramist to create a crown with good translucency and refractive properties.

PFM crown prep is of paramount importance from a clinical perspective. To achieve excellent aesthetics, follow general tooth preparation guidelines.

  • Facial reduction for anterior teeth – 1.5 mm minimum
  • Lingual reduction for anterior teeth – 1.0 mm minimum
  • Buccal and lingual surfaces of posterior teeth – 1.5 mm minimum
  • Incisal or occlusal reduction – 2.0 mm
  • Interproximal reduction – 1.5 to 2.0 mm
  • Smooth shoulder margins – especially necessary for porcelain margins
Black Man PFM

Taking Impressions for Porcelain Fused To Metal Crowns

Although polyvinyl siloxane impressions have been successfully used for many years, there are now more accurate methods to capture an exact representation of a PFM crown prep.

Impressions for porcelain fused to metal crowns taken via chairside 3D scanning technology offer many distinct benefits and advantages over physical impressions.

  • Allows the dental laboratory to incorporate crown fabrication into a digital workflow
  • Patient acceptance and comfort are improved – no messy impressions to cause gagging
  • Models may be printed to exact specifications resulting in improved fit
  • Crown margins are well delineated, leaving less to interpretation and human error
  • 3D-designed restorations require fewer adjustments at delivery, saving chair time

Color Choices

While porcelain colors correspond to the VITA Shade Guide, a skilled ceramist has the ability to combine more than one color on the same restoration, if necessary, to give the crown a true blended appearance with the neighboring teeth. In addition, custom staining is also possible for an enhanced, more lifelike appearance even after final crown fabrication.

Woman Dental Crowns

Delivery and Cementation

Properly reduced PFM crown preps allow for partial mechanical retention. This lets the cement, the weakest link, be applied in a thin layer for security rather than relying upon a bulk amount of cement material to take up excess space inside of the crown. Most dentists find resin-modified glass ionomer works well for porcelain fused to metal crown cementation.

Denture Repair

Adjustments

If digital impressions were used to capture the PFM crown prep, few to no adjustments are necessary upon delivery. This saves a tremendous amount of time and reduces overall costs to the dental practice.

Porcelain Fused To Metal Crowns: A Sound Choice

Not sure that porcelain fused to metal will give your patient the result they are looking for? Stomadent Dental Laboratory offers fixed restorative solutions to address every need and every aesthetic concern. No crown material fulfills every need.

Each type of restorative material has its own set of advantages and disadvantages. Our experienced and knowledgeable technicians can direct you to the most appropriate restoration for your specific clinical indication. For a complete discussion of all of Stomadent’s laboratory services and our fee schedule, see Stomadentlab.com.

If you are in the Treasure Valley area, we offer free pickups. For orders outside of Treasure Valley, we utilize free, two-day shipping with FedEx in order to ensure that your dental appliances arrive to you quickly.

Contact us today with any questions or to receive your free starter kit.
